IoT Products

Smart Tracking

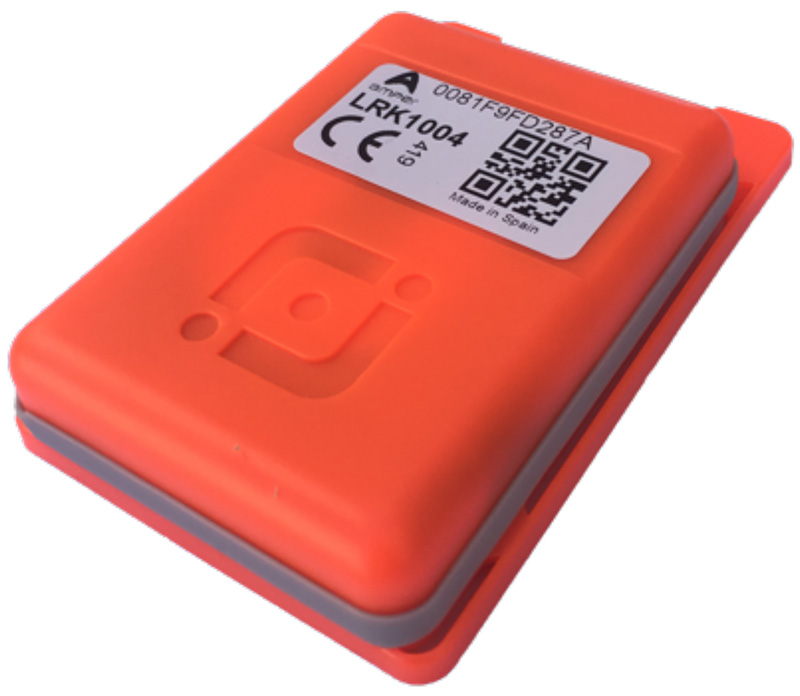

Personal Tracker LRK1004x

Personal Tracker LRK1004x is a portable device in the shape of an identification badge used to track workers that undergo construction activities outdoors. There are different models depending on the mobile communication being used. LRK1004x allows the implementation of security policies via geofencing. The inbuilt accelerometer can detect crash events and help in potentially dangerous situations through the use of the control platform. It reports the GPS location periodically, the height of the server and it gives commands with sound back to the device.

Technical characteristics

• GPS receptor for outdoor location worldwide
• Sensors:
– 3 axis accelerometer to detect movement
– Altimeter (atmospheric pressure sensor)
– Light sensor
– Temperature sensor
• Wireless rechargeable battery
• Communications:
– Bluetooth 4.2 for local setting and indoor
– LoRa. Model LRK1004 LoRa
– IBW. Model LRK1004IBW
– NB-IoT. Model LRK1004nb
• High performance printed antenna
• Buzzer and vibrator to alert the user
• Supports ID standard cards. It can be used as plaque support.
• Environmental Protection IP65. Optionally IP68 and ATEX certificate.
• Light: Only 60 g
• Size: 90 x 60 x 15 mm
• Working temperature: -20 a 55ºC

Datasheet

Download datasheet LRK1004-NB

Download datasheet LRK1004-NB-X

Download datasheet LRK1004-LR

Download datasheet LRK1004-LR-X

Download datasheet LRK1004-IBW

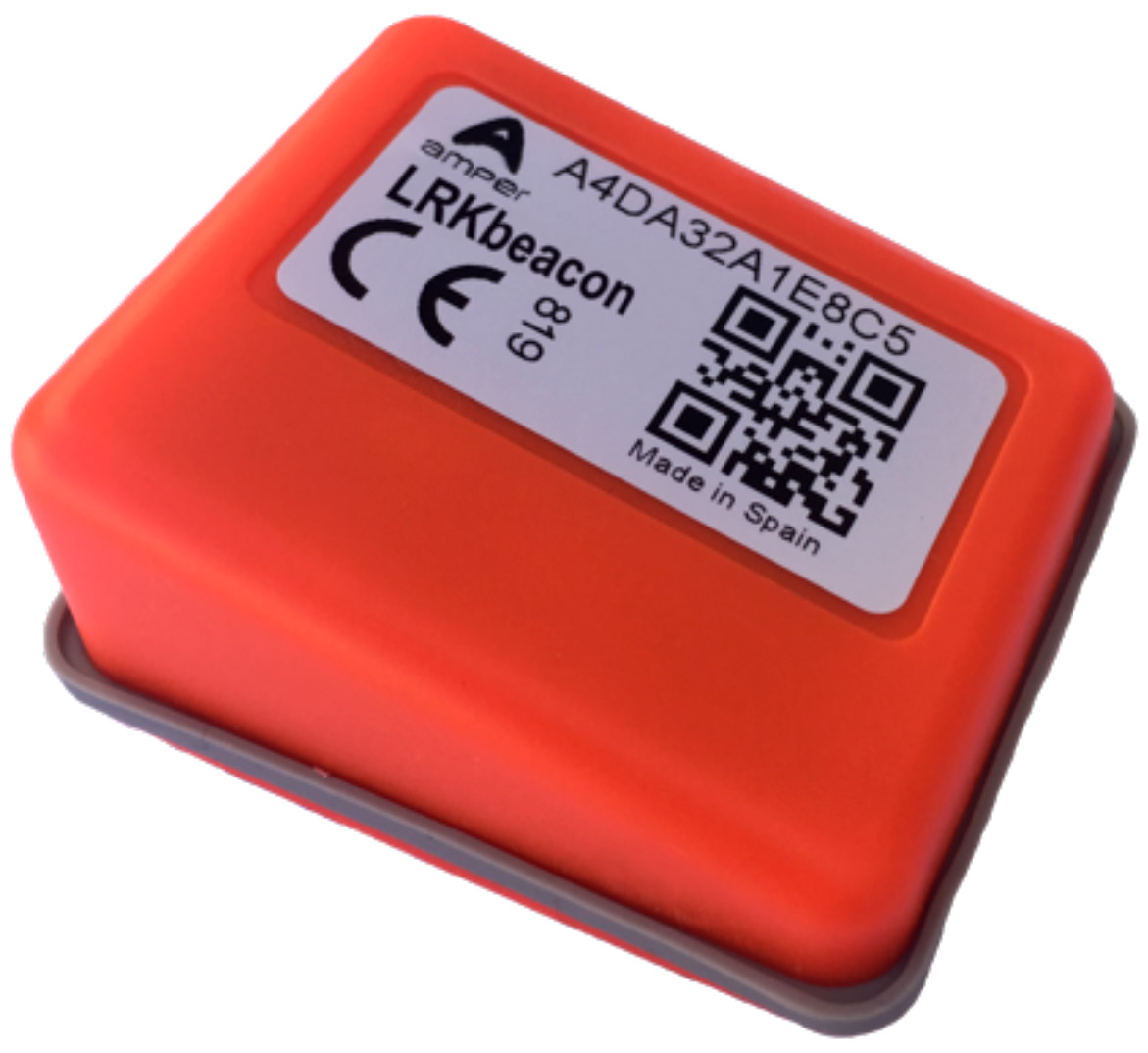

LRKbeacon Assets Tracker Beacon

LRKbeacon is a low consumption device that sends out a broadcast signal with BLE technology and allows LRK1004 devices to receive this signal that is sent to the network platform. The cloud service processes the information and undergoes a detailed analysis to determine tracker LRK1004 location.
LRKbeacon is used to accurately find the location indoors in a closed environment.

Technical characteristics

• 1200mAh long life battery. It guarantees 12 month of operation minimum in normal conditions.
• Communications:
– Bluetooth 4.2 for broadcast emission
• High performance printed antenna
• Environmental Protection IP65. Optionally IP68 and ATEX certificate.
• Size: 65 x 46 x 17 mm
• Working temperature: -20 a 55ºC

Datasheet

Download datasheet LRKbeacon

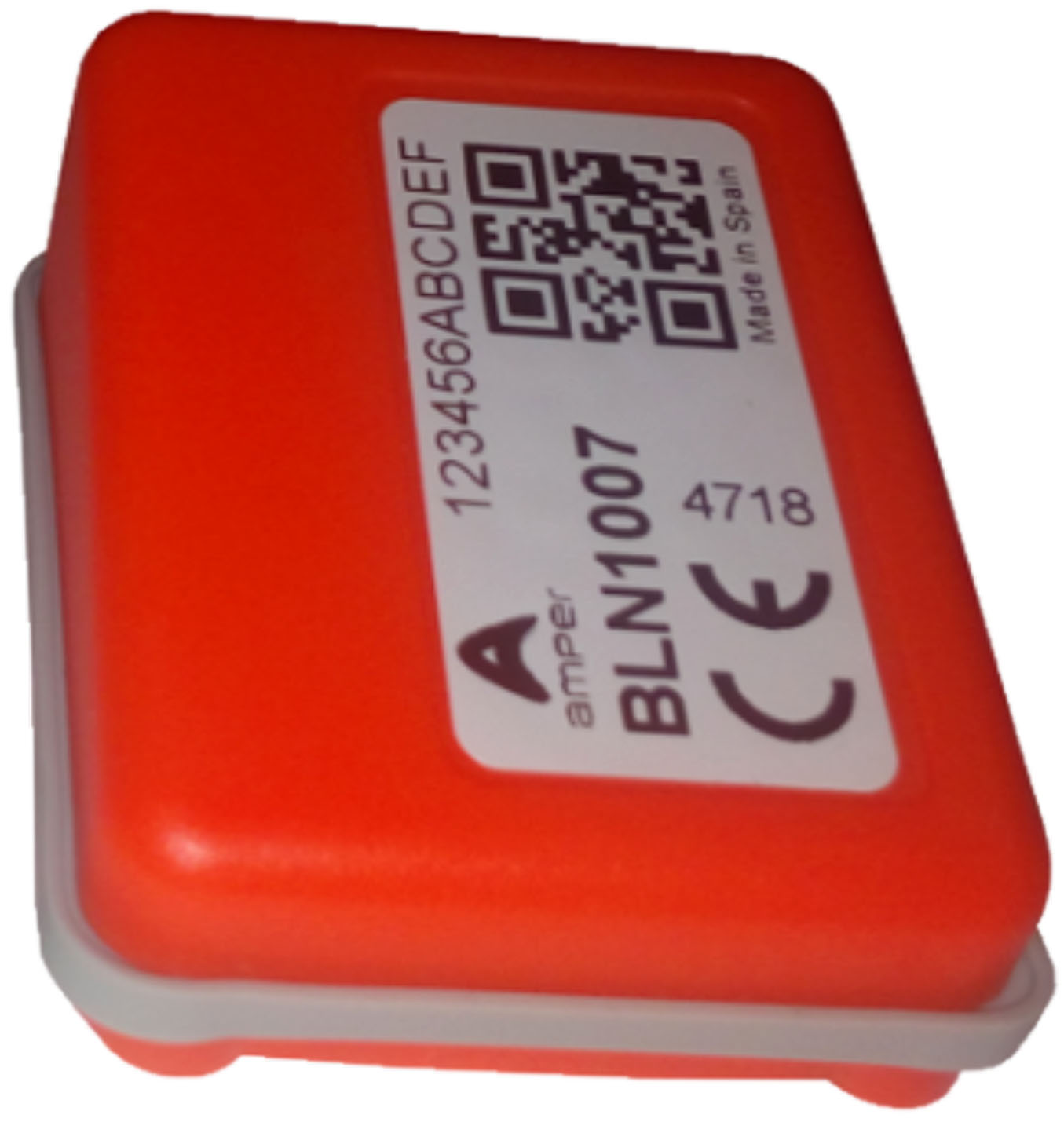

Asset Tracker BNL1007nbLC

Asset Tracker BLN1007nbLC is a low cost device thought to track assets in applications where there is not need for high accuracy regarding location, but a competitive price is needed.
This device is specially designed to track pales.

Technical characteristics

• Exterior location based in cells and WiFi
• Sensors:
– 3 axis accelerometer to detect movement
– Temperature sensor
• 1200mAh long life battery. Guaranteed for a minimum of 12 months in normal conditions.
• Communications:
– Bluetooth 4.2 for local settings and location indoors
– NB-IoT
• High performance printed antenna
• Environmental Protection IP65. Optionally IP68 and ATEX certificate.
• Size: 65 x 46 x 17 mm
• Working temperature: -20 a 55ºC

Datasheet

Download datasheet BNL1007nbLC

Asset Tracker BNL1007x

Asset Tracker BLN1007x is a device thought to locate assets in warehouses or during contruction activities outdoors. It is operational everywhere, even when there is no signal. Its inbuilt accelerometer detects movement, and its energy saving policy avoids transmissions while in movement and out of reach from Gateway BLN1000 BLN1007x. It sends its GPS location to the server. A factory pone is used to link the device with a particular asset, reporting the administration platform. A mobile app is used to track the particular asset in the area covered by the app in the platform. Once used, the device can be disposed of or it can be reassigned to another asset.

Technical characteristics

• GPS receptor for outdoor location
• Sensors:
– 3 axis accelerometer for movement detection
– Temperature sensor (optional)
• 1200mAh long life battery. Guaranteed for a minimum of 12 months in normal conditions.
• Communications. Different options:
– Bluetooth 4.2 for local settings and ´neighbour’ location
– NB-IOT: Modell BLN1007nb
– Owner Protocol: Model BLN1007IBW
– LTE-M: Model BLN1007LTE
• High performance printed antenna
• Environmental Protection IP65. Optionally IP68 and ATEX certificate.
• Easily adjustable to different surfaces
• Size: 65 x 46 x 17 mm
• Working temperature: -20 a 55ºC

Datasheet

Download datasheet BNL1007-NB

Download datasheet BNL1007-IBW-X

Download datasheet BNL1007-NB-X

Download datasheet BNL1007-IBW

Download datasheet BNL1007-LR

Download datasheetBNL1007-LR-X

Download datasheet Gateway NG1100

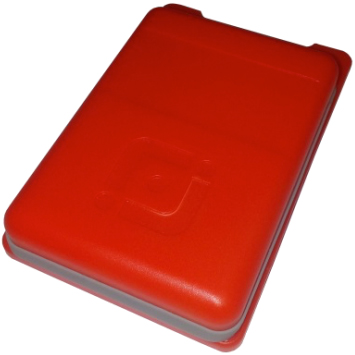

Asset Tracker BNL1004

Asset Tracker BLN1004x is a device thought to track yellow line machinery during construction activities ourdoors.
BNL1004 allows the implementation of geofencing policines for a better control and security. The inbuilt accelerometer can detect crash events and help potentially dangerous situations through applications and precedures of the control platform.
BNL1004 transmits GPS location periodically to the server when it’s moving beyond a set distance. The device reports the envents and measurements of the accelerometer and the temperatura sensor when limits are surpassed.

Technical characteristics

• GPS receptor for outdoor location anywhere
• Sensors:
– 3 axis accelerometer to detect movement
– Temperature sensor
• 950mAh Wireless rechargeable battery with approximately one month duration
• Communications. Different options:
– Bluetooth 4.2 for local settings and indoor location
– NB-IoT: Model BNL1004nb
– LoRa: Model BNL1004LoRa
• High performance printed antenna
• Environmental Protection IP65. Optionally IP68 and ATEX certificate.
• Easily adjustable to different surfaces
• Size: 90 x 60 x 17 mm
• Working temperature: -20 a 55ºC
